After the Flood Disaster in Western Germany: What Science Must Find Answers To

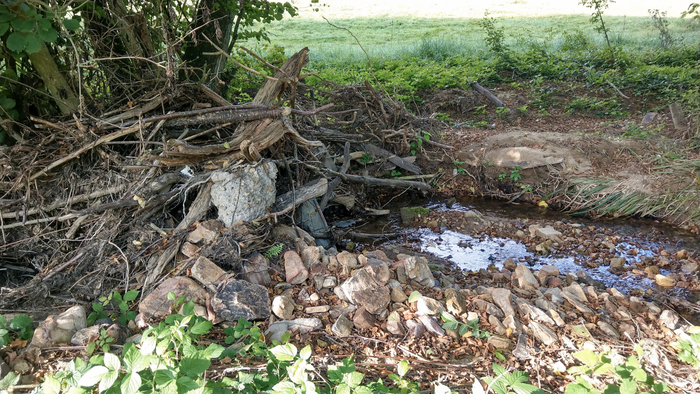

Woody debris clogging a small creek of the Ahr river, leading to temporal ponding, massive sediment deposition and overbank spillways of the flood water.

On 14 July 2021, between 60 and 180 mm of rain fell in the Eifel region in just 22 hours – an amount that would otherwise have fallen in several months and which led to catastrophic flooding. The events were far more destructive than existing models had predicted. Researchers at the Helmholtz Centre Potsdam – GFZ German Research Centre for Geosciences point at a number of effects that have occurred only rarely in Central Europe so far and have therefore not been taken sufficiently into account. These include, in particular, the mobilisation of dead wood and sediment, both effects that are likely to become more important as climate change progresses. Michael Dietze and Ugur Öztürk report today in the journal Science on the mechanisms that have amplified the effects of the flood. They also give an outlook on a new research project that starts here in order to make future anticipation efforts more realistic.

Researchers as accidental witnesses to the flood disaster

14 July is a rainy day. GFZ researcher Michael Dietze is on his way back from a field visit in the southern Eifel with colleagues from Potsdam and the University of Bonn. Heading back north, they quickly realise that what is happening just outside is more than a long heavy rain: The online data view of the Altenahr gauge rises rapidly every 15 minutes, faster than the actual forecast, and faster than the researchers would have liked to, because their own measurements are affected. Flooding of the Ahr is nothing unusual: as part of a research project, Dietze and colleagues had set up several seismic stations on a three-metre-high terrace in the Ahr valley a few weeks earlier – assumed to be at safe distance to hostile flood conditions. They wanted to use them to measure ground motion caused by sediment movement and water turbulence during “regular” floods. Now the level is already one metre above the terrace, the stations are lost.

Familiar effects – but from other parts of the world

What the researchers were experiencing here, is only a fraction of the actual catastrophe that is taking its course in the valleys of the Ahr, Erft and Rur rivers. “The flood in the valleys of the Eifel was far more violent, faster and more unpredictable than we had previously assumed for such an event in the centre of Europe,” says Michael Dietze, PostDoc in the Geomorphology Section at GFZ and the Department of Geography at the University of Bonn. The causes are manifold and well known, though not from Central Europe, but rather from the deserts of the world, and from the tropics.

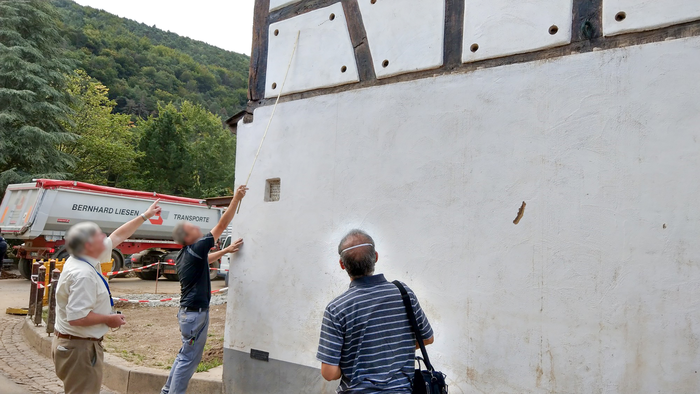

Owner showing the water level of the 14 July flood on his house in Walporzheim. Note the 2.2 m water mark of the 1804 flood and the 0.6 m mark from 2016 for comparison.

Quickly saturated soil

The rain could no longer enter the soil, which has already been saturated due to rainy weeks before. It was also too strong to run down the slopes as a thin film of water. Instead, slopes literally turned into wide rivers and transported the water not at a speed of a some centimetres, but suddenly at a few metres per second, i.e. up to a hundred times faster. This allowed it to converge into a flood wave in the actual valleys much faster.

Enormous erosive power of the water

In addition, the water developed enormous erosive power: On the one hand, it dug channels into the slopes and was able to flow even faster in those self-dugged pathways. On the other hand, it mobilised considerable amounts of sediment and dead wood. Once in the main valleys, the tree trunks and branches drifted towards bridges. There they became entangled and led to so-called blockages. As a result, the runoff was impeded, the water dammed up and also inundated more distal areas.

Unexpected effects at gravel pits and roads

In the course of these events, effects and so-called coupled hazards arose that had previously not been thought possible in the region. The Erft, normally five metres wide, rose beyond its banks near the town of Blessem and poured over a field directly into a gravel pit. The edge of that pit cut its way upstream towards Blessem over a length of 300 metres, like a wandering waterfall. It undermined the first houses and led to their collapse.

The road through Blessem also became a river, which – starting at the unpaved edges – undermined the road’s foundation, leaving only the sewage pipes behind. This erosion ceased only by chance as less and less water flowed down the Erft.

Coupled hazards: the dam of the Steinbach reservoir

The Steinbach Dam, located only 35 kilometres upstream, posed a particular danger. This earth dam holds back 1.2 million cubic metres of water. In the evening of 14 July, it was flooded knee-deep over a width of 150 metres because the emergency spillway was unable to discharge the incoming water masses. The flooded dam eroded massively, so that a breach was imminent. If this had happened, the flood wave would have refueled the processes in Blessem, and furthermore caused massive destruction in the villages directly downstream of the dam. “This example spotlights how closely coupled even seemingly distant localities are,” Dietze emphasises.

Outlook: Identification of new research approaches

“As climate change continues, we may encounter precipitation events like the one on 14 July 2021 quite frequently. Therefore, research must now begin to understand precipitation-induced floods not only as a phenomenon of too much fast-flowing water. We also have to include the associated self-reinforcing effects, some of which are also favoured by climate change,” says Dietze. These include slope dissection, especially in the upper catchments, the mobilisation of dead wood and eroded vital trees, as well as their role in clogging human infrastructure. In addition, new coupled hazards need to be identified and considered.

New research project provides important data for future models

An important step in this direction will be to map out the traces of the July 2021 disaster, quickly and at high resolution. This applies especially to the areas where the flood has gained its momentum and which have hardly been in the public focus so far: the upper catchment areas of the rivers up to the headwater regions. With a recently approved project, jointly funded by the GFZ and the NatRiskChange Research Training Group at the University of Potsdam, these areas are now being specifically surveyed by airborn laser scanning. This will yield high-resolution 3D models of the changed landscape. In comparison with pre-flood 3D models, key information can be collected on eroded slopes, mobilised wood and flooded areas, all unique data that once evaluated will improve future models. And then Dietze and his colleagues may have a more robust foundation to reinstall their seismic stations to analyse flood-related sediment load at actually safe locations.
